Bending Wedge Wire Screen

Bending Wedge Wire Screen

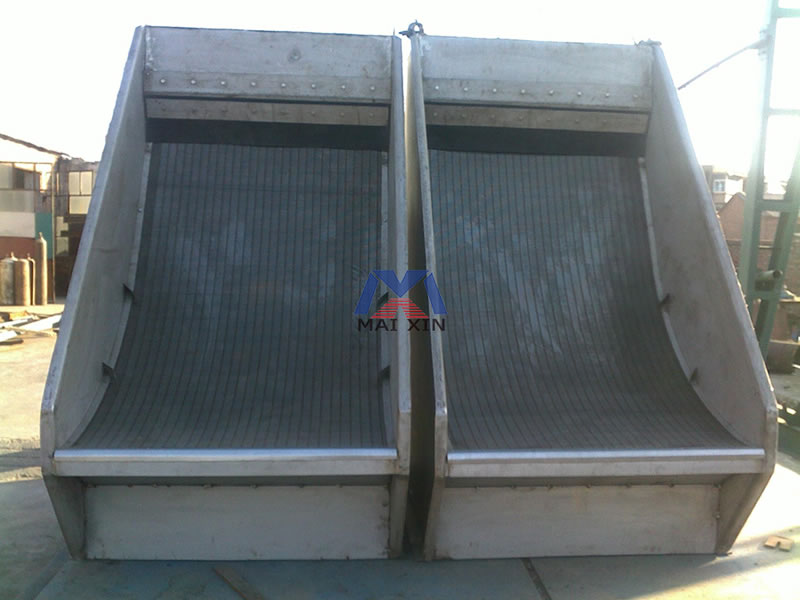

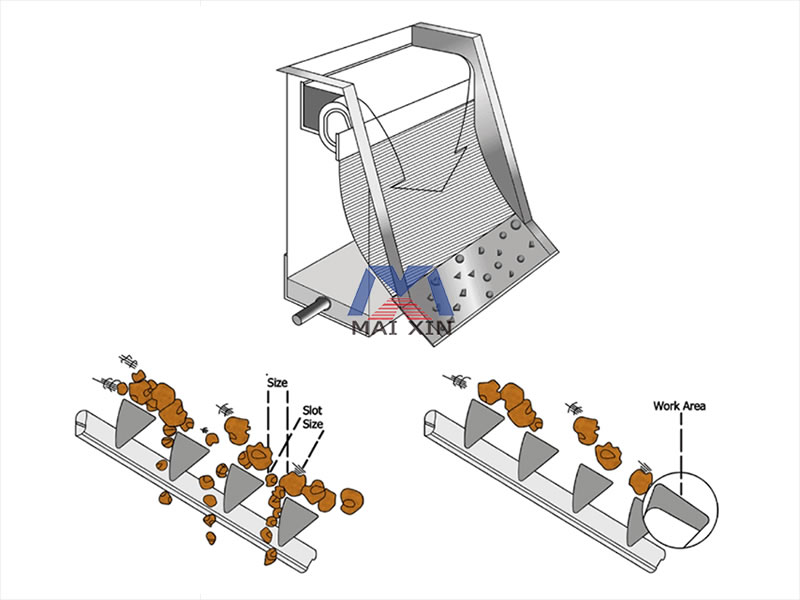

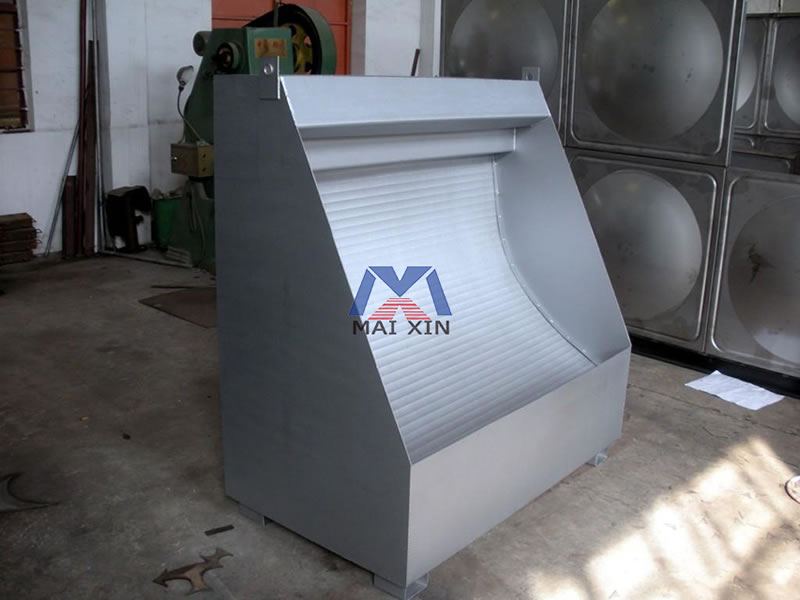

Bending wedge wire screen( DSM screen) is ideal for sizing and dewatering applications to remove solids from liquids or in solid/solid separation for dry feed situations. When the filtering materials flows against the sieve screens, relying on centrifugal force and gravity of the water in the sieve gate relative shear movement, separating the solids and liquids to sieve. The same time, the online gathering solids, with the flow rolling down liquid continuously hydraulic erosion sieve gate, making it play a role in self-purification, thus completing the whole process of sieve continuous self-purification and solids collected. Wedge wire sieve bend screen has continuous slots, which supplies large open area and efficient filtering performance. Curved surface structure supplies higher flow rate, greater capacity and better filtering than wedge wire screen flat panels.

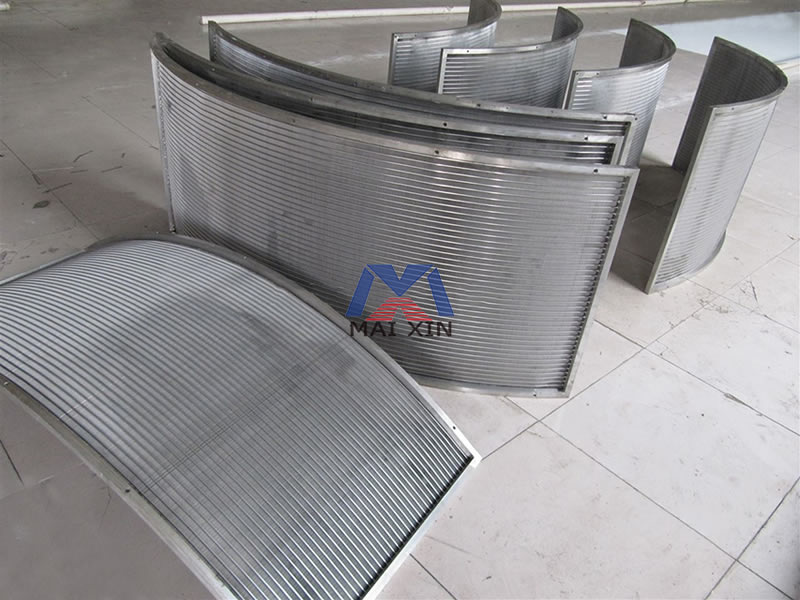

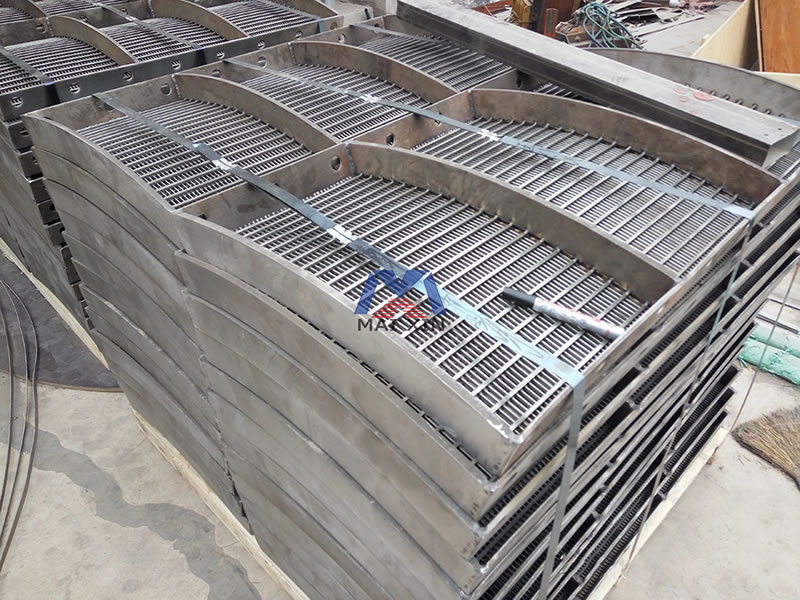

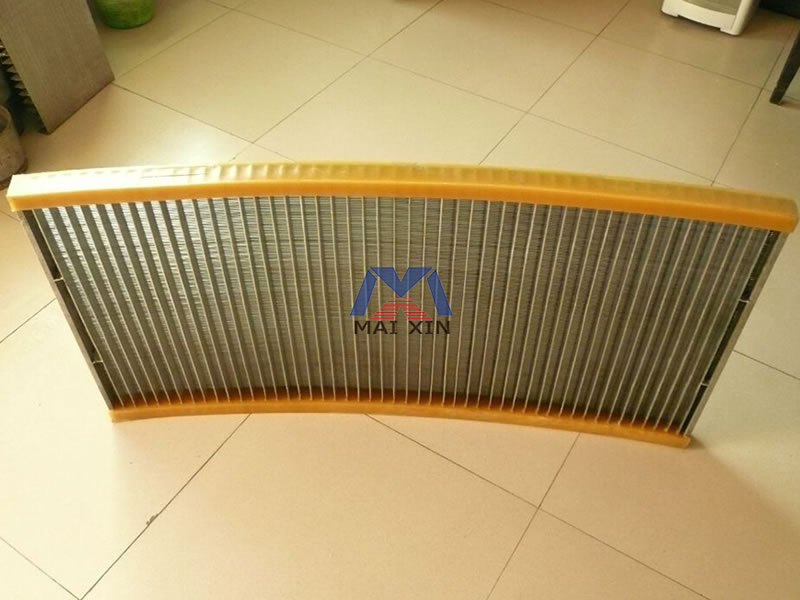

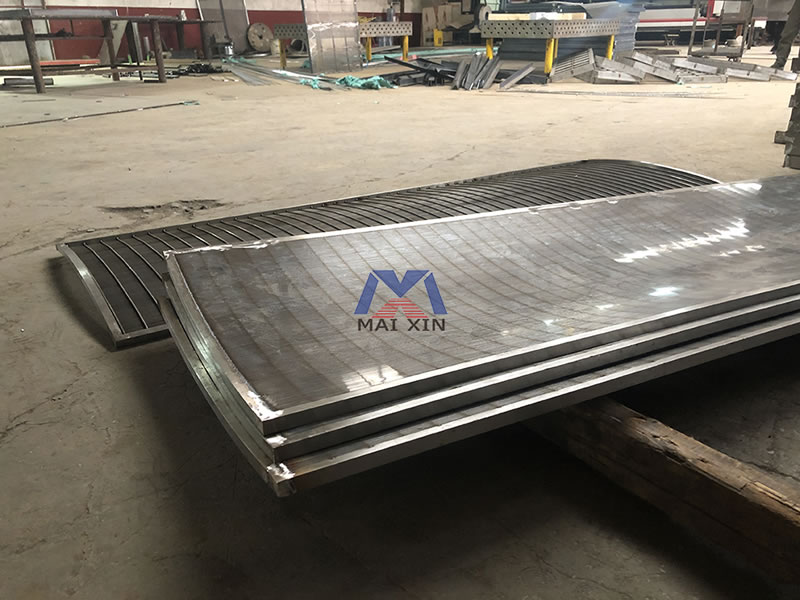

Product production process: curved concave wedge bar type of screens made of stainless steel wedge wires. manufactured by welding the stainless steel V-shaped profile wires to the wedge wire support rods. Then the wedge wire panel screens are cutting and curved into wedge wire sieve bend screen with common 45°,60° and other degree arcs. At last, the wedge wire sieve bends will be inserted into a stainless steel frame for easy installation onto equipment.

Product Features:

High filtering, sizing, dewatering, performance, Good mechanical properties. Great capacity than the traditional vibrating screens, Corrosion and rust resistance, High temperature resistance, Low maintenance, It is easy to clean and need less maintenance, Non-clogging, Long and durable service life, Easy to install and replace.

The wedge wire sieve bends are mainly used for dewatering, sizing and waste water cleanup applications. They can be used in various fields, Corn wet milling, Starch processing, Manure separation, Coal mining, Sand plant, Pulp & paper, Water intake system, Fish diversion, Municipal wastewater plant.

Standard specification data sheet
