Wedge Wire Screen Basket

Wedge Wire Screen Basket

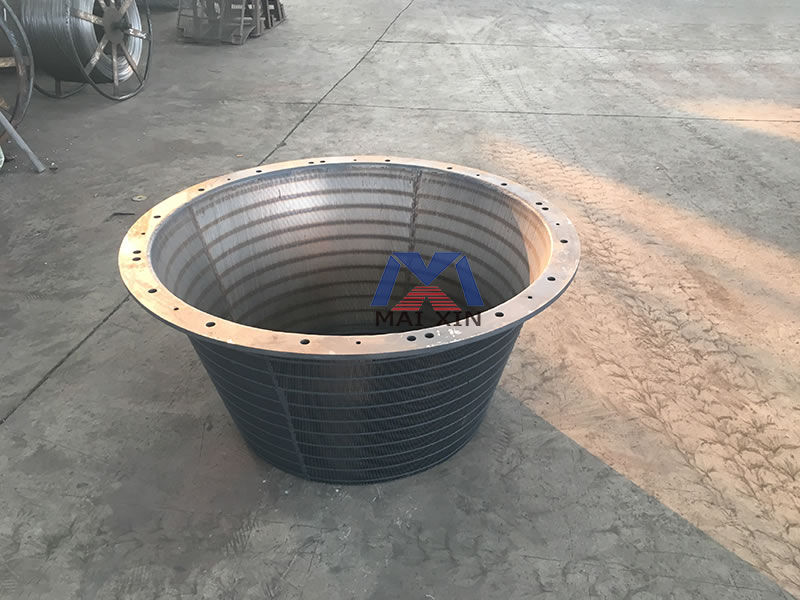

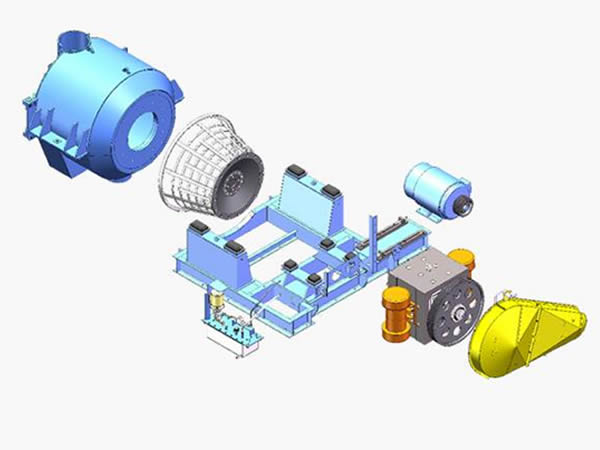

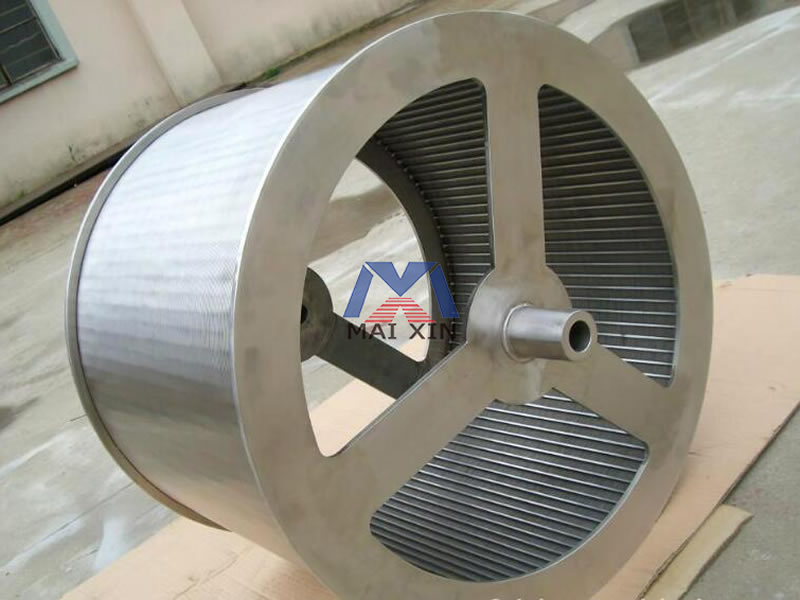

Wedge wire screen basket is a key component of centrifugal dewatering equipment that is mainly used for centrifugal dewatering. It is widely used in coal, chemical, metallurgy and other fields. It is a high-speed rotating part. The basket in working not only needs to withstand vibration, but also withstands the severe impact of coal and water. Therefore, its requirements for strength and accuracy are higher. At present, the most commonly used components of centrifugal dewatering equipment are wedge wire screen baskets, perforated metal screen baskets and woven mesh screen baskets. Wedge wire screen baskets provide more filtration area than perforated metal screen baskets. Furthermore, it is stronger than woven mesh screen baskets, and can withstand greater pressure.

Ring welding technology:

Ring welding technology is the most advanced welding technology in the wedge wire screen production, which makes the welding between the wedge wire and the support bar stronger, without stripping or deformation.

High roundness and coaxiality:

The coaxility correction equipment guarantees the high roundness and coaxiality of our products.

High compressive strength:

There are multiple longitudinal and transverse support bars on the outside of the wedge wire screen baskets, which greatly enhances the compressive strength of the wedge wire screen baskets.

Stable filtration and separation capabilities:

Wedge wire screen basket has a unique continuous slotted structure, which guarantees more stable filtration and separation capabilities. The unique structure and characteristics of the wedge wire screen basket have been widely used in centrifugal dewatering equipment.

Specifications

Material: stainless steel. 304, 314L, 316, 316L or 321.
Slot size: 0.3 mm - 1.0 mm.
Profile wire: 1.5 mm × 4 mm, 2.2 mm × 3.5 mm, 2.2 mm × 4.5 mm, 2.8 mm × 5 mm, 3.1 mm × 6 mm, 2.8 mm × 6.5 mm, 3.4 mm × 7.5 mm.
Support rod type: triangle wire, round rod, flat bar or wedge wire.
Basket diameter: 500 mm, 600 mm, 800 mm, 1000 mm, 1200 mm, 1300 mm, 1530 mm. Basket height: 300 mm, 400 mm, 500 mm, 600 mm, 800 mm.
