Welded Wire Mesh
Stainless steel welded wire mesh can last long for the corrosion resistance compared to galvanized welded wire meshes. There is no need with surface treatment, it itself has the feature of corrosion resistance. extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial.

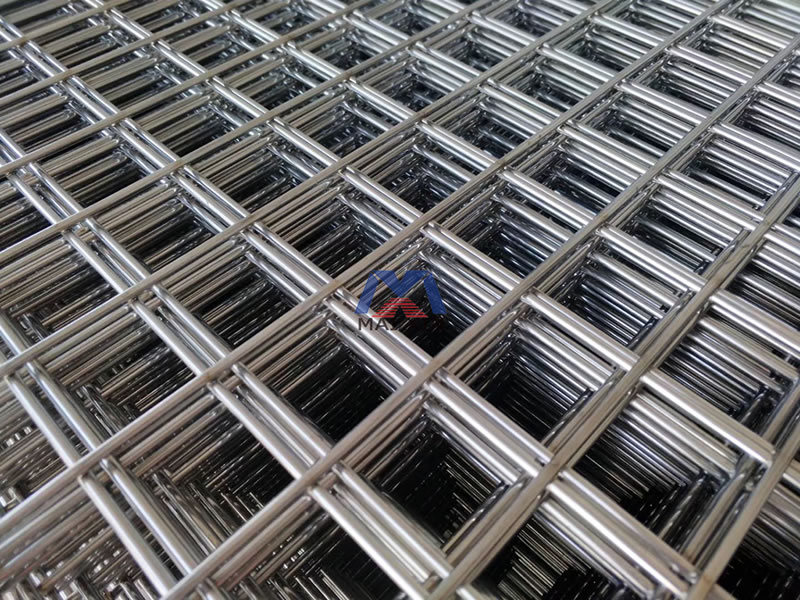

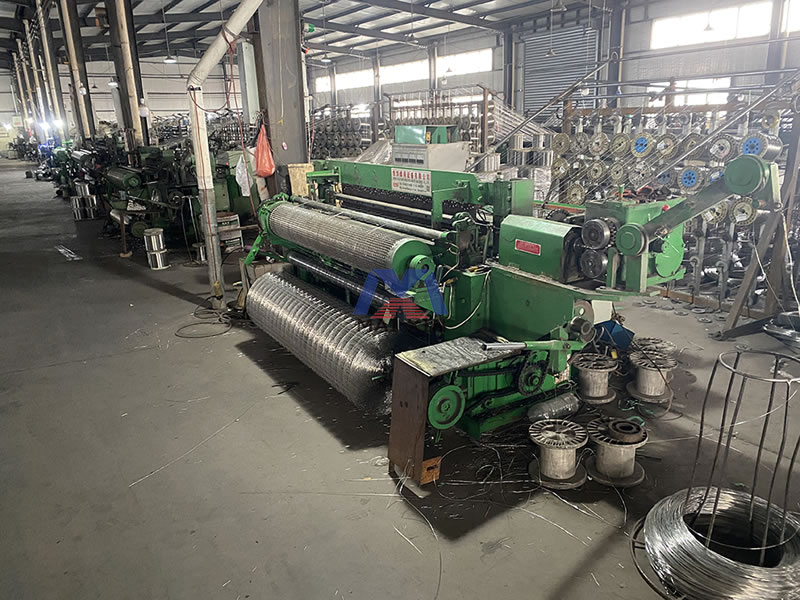

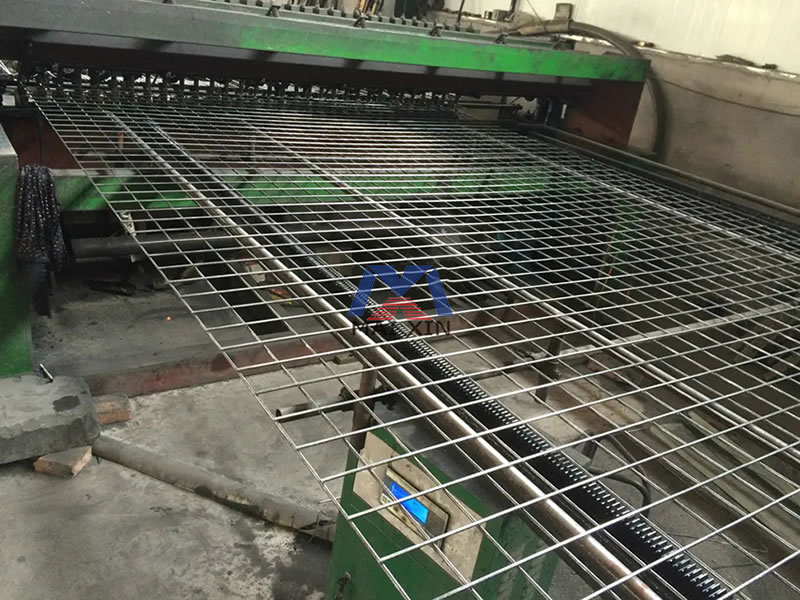

Stainless steel welded wire mesh is metal mesh products formed by welding a series of crisscrossed stainless wires together by a resistance welding machine. Welded mesh with 3-50mm (1/8-2 in.) openings is also called hardware cloth.

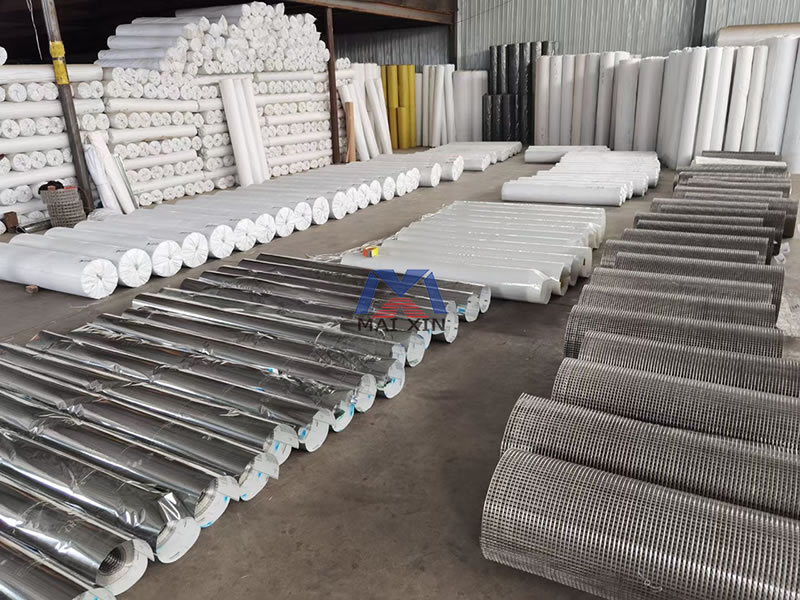

Stainless steel welded mesh has uniform grid patterns, the delivery conditions are usually rolls, sheets or panels, depending on the wire diameter and customer requirements. The commonly used materials are available in 201, 202, 304, 304L, 316, 316L, other grades can be customized according to customer requirements.
| Table 1: Specifications of Stainless Steel Welded Wire Mesh | ||||
| Item | Mesh Size | Wire Diameter | ||
| mm | inch | BWG gauge | mm | |
| SWWMS-01 | 6.4 | 1/4 | 24–22 | 0.56–0.71 |
| SWWMS-02 | 9.5 | 3/8 | 23–19 | 0.64–1.07 |
| SWWMS-03 | 12.7 | 1/2 | 22–16 | 0.71–1.65 |
| SWWMS-04 | 19.1 | 3/4 | 21–16 | 0.81–1.65 |
| SWWMS-05 | 25.4 × 12.7 | 1 × 1/2 | 21–16 | 0.81–1.65 |
| SWWMS-06 | 25.4 | 1 | 21–14 | 0.81–2.11 |
| SWWMS-07 | 38.1 | 1-1/2 | 19–14 | 1.07–2.11 |
| SWWMS-08 | 25.4 × 50.8 | 1 × 2 | 17–14 | 1.47–2.11 |
| SWWMS-09 | 50.8 | 2 | 16–12 | 1.65–2.77 |
