Crimped Wire Mesh
Stainless Steel Wire Mesh
Crimped Wire Mesh
Crimped wire mesh can be also known as the iron crimped mesh, stainless steel crimped mesh and black iron crimped mesh according to different materials. It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type.
Crimped wire mesh products are used as fence or filter in a lot of industries. Heavy type crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Light type crimped wire mesh can be used to roast for food or meat. It has the advantage of heat resistance, corrosion resistance as well as nonpoisonous, tasteless and convenient for handling.
Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Features: They enjoy the features of strong structure, loading capacity and keeping forms.
Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.
| Wire diameter(mm) | Opening (mm) | Weight（kg/m2） |
| 12 | 60 | 25.9 |
| 10 | 60 | 18.5 |
| 9 | 60 | 14.9 |
| 8 | 60 | 12.19 |
| 7 | 50 | 11.13 |
| 6 | 50 | 8.32 |
| 5 | 40 | 7.2 |
| 4 | 40 | 4.73 |
| 4 | 30 | 6.07 |
| 4 | 25 | 7.1 |
| 3.2 | 25 | 4.7 |
| 3.2 | 20 | 5.63 |
| 2.6 | 20 | 3.87 |
| 2.6 | 18 | 4.23 |
| 2.6 | 15 | 5.77 |
| 2 | 15 | 3.06 |
| 2 | 12 | 3.67 |
| 2 | 11 | 3.9 |
| 2 | 8 | 5.17 |
| 1.8 | 7 | 4.96 |
| 1.8 | 6 | 5.36 |
| 1.6 | 7 | 3.9 |
| 1.6 | 6 | 4.37 |
| 1.6 | 5 | 5 |
| 1.6 | 4 | 5.87 |
| 1.6 | 3 | 7.17 |
| 1.4 | 6 | 3.5 |
| 1.4 | 5 | 4 |
| 1.4 | 4 | 4.67 |
| 1.2 | 8 | 1.97 |
| 1.2 | 7 | 2.26 |
| 1.2 | 6 | 2.57 |
Square Mesh Weave
Square Mesh Weave
Flower Typ Weaving

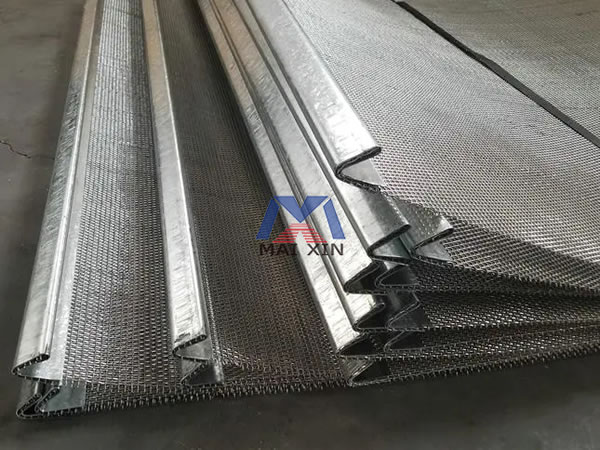

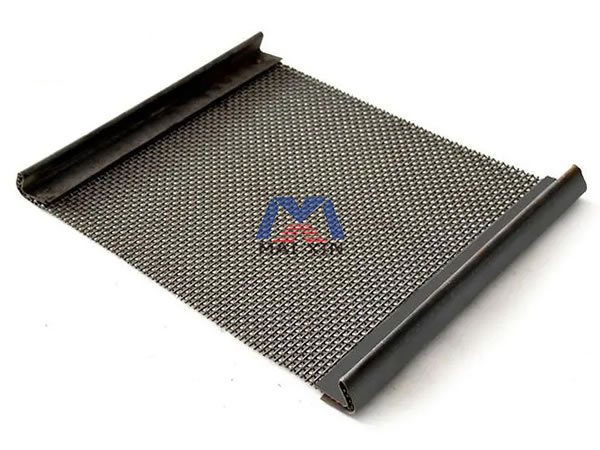

Quarry Crimped Wire Mesh
Quarry Crimped Wire Mesh
Quarry Crimped Wire Mesh

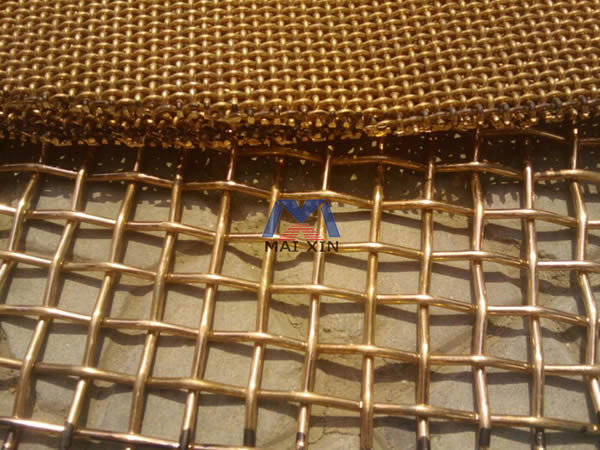

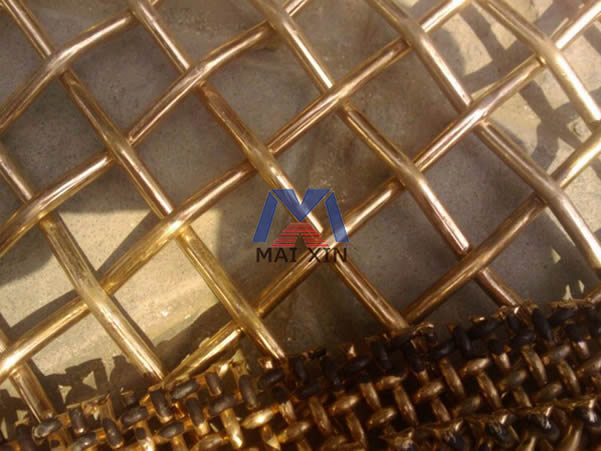

Copper Crimped Mesh
Copper Crimped Mesh
